FEATURES
|

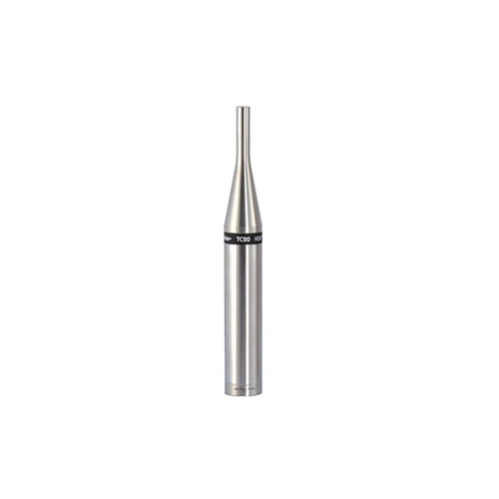

Cost effective general-purpose omni with high frequency response to 20kHz Ideal for a wide variety of instruments and vocals, including acoustic guitar, string instruments and piano For live sound the TC20 can be used for close miking instrument amps, drums or brass Omnidirectional polar pattern Accurate and uncolored Effortlessly handle high sound pressure levels up to 150dB SPL while simultaneously capturing subtle details Fast impulse response and diaphragm settling time Exceptional flat frequency response and are time coherent, so they sound natural and uncolored |
SPECIFICATIONS
|
Frequency response : 9Hz to 20kHz ±1/-3dB Polar pattern : Omnidirectional Sensitivity : 8mV/Pa(-42dBV/Pa) Power requirements : 24~48 V Phantom, 10mA Max acoustic input : 150dB SPL Output : XLR(pin 2+) Output impedance : 65Ω balanced(between pins 2 & 3) Min output load : 600Ω between pins 2 & 3 Noise : 26dB SPL equivalent(A weighted) Dimensions L x D : 165mm x 22mm (6.5 x .860 inches) Weight : .35lb.(160g) |
