Loudspeakers >

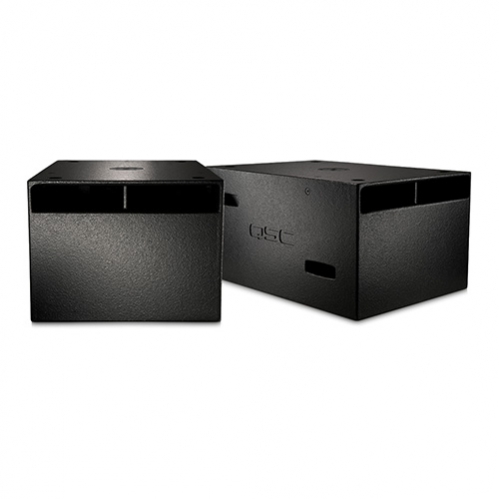

GP212-sw

Passive Subwoofer(Stack), Dual 12", 1,100W

상세정보



FEATURES


4th order band pass 인클로져 타입에 2개의 12" 서브우퍼 장착
그라운드 스택에 적용되는 완전한 리깅 하드웨어
32Hz 까지 확장된 저역(-10dB)




SPECIFICATIONS


System details

Configuration : 2 x 12" - 4th order band-pass subwoofer
Transducers : 2 x 550W, 8Ω 12" woofer with a 4" voice coil, ceramic magnet assembly
Frequency response(±3dB) : 40Hz~100Hz (without processing)
Frequency range(-10dB) : 32Hz~107kHz (without processing)
Nominal impedance : 4Ω
Continuous power capacity : 1,100W
Recommended power : 1,650~2,200 W
Sensitivity(1W at 1m) : 99dB
Maximum output - continuous/peak (SPL at 1m) : 129.4dB/135.4dB
Connectors : 2 x NL4 in parallel
Pin outs : 1+1-/sub, 2+2-/NC

Enclosure details

Cabinet type : 4th order band-pass
Enclosure material : Baltic birch plywood/15mm
Attachment points : Six(6) threaded M10 inserts
Weight(net/shipping) : 99.5lbs(45.1kg)/115.5lbs(52.4kg)
Dimensions(HWD) : 15" x 20" x 29“(381 mm x 508 mm x 737 mm)
Accessories available(optional) : CP212-1 – 4-wheel transportation dolly plus soft cover (for one sub) CP212-2 – 4-wheel transportation dolly plus soft
               cover (for two subs stacked)
