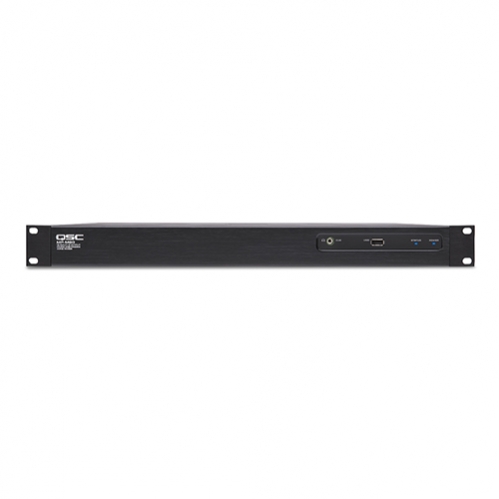

MP-M series 음악 및 페이징 믹서는 고품질 포어그라운드/백그라운드 오디오를 처리 및 라우팅하는 전례 없는 기능을 제공하며, 피트니스 클럽, 호텔 미팅룸, 연회장 등 라이브 사운드가 필요한 공간을 위해 라이브 믹싱 기능을 제공합니다.

쉬운 구성 및 설계
워크플로우 마법사
QSC 라우드스피커 보이싱
맞춤형 제어 레벨
유선/무선 제어 옵션

System details

Inputs
- Total : 16
- Mic/line : 8(euroblock)
- RCA : 8(mono-summed RCA pairs)

Outputs
- Total : 106
- Line : 8(euroblock, balanced)
- Music-on-Hold : 1(euroblock, transformer balanced)
- Cue(phones) : 1(3.5mm, stereo)

Audio
- Sampling frequency : 48kHz
- Processing : 32-bit floating point
- THD : < 0.005%, +4dBu and -2dBr; 20Hz~20kHz, unity gain, any input to any output
- Frequency response : 20Hz~20kHz +/-0.5dB, mic/line or line input to any line output
- Dynamic range : > 106dB unweighted
- Crosstalk : > 90dB typical, >80dB max
- Gain(mic inputs) : 51dB
- Maximum input level : +24dBu(mic/line inputs), +10dBV(line inputs)
- Maximum output level : +21dBu(line-level outputs), +10dBV (music on hold)
- Phantom power : All microphone inputs(+12volts)
- Latency : 2.3msec

Input processing
- EQ : 4-band parametric EQ with high/low shelving option, variable 24dB/octave HPF and LPF
- Dynamics : Gate, choice of AGC(Auto Gain Control) or compressor

Output processing
- EQ : 1/3 octave GEQ
- Anti-feedback filters : 12-band variable notch filters
- Dynamics : Comp/limiter, ducker, loudness
- Delay : 100msec
- Loudspeaker tunings : Factory: Intrinsic correction™ voicing for QSC loudspeakers
           User: 6-band parametric EQ, HPF&LPF(Linkwitz-Riley or Butterworth; 12, 18 or 24dB/octave)

Control accessories
- MP-MFC : Optional wall controller
- MP Install : For configuration/design functions(for iOS/Android tablets, Windows and Mac OS PCs)
- MP manage : For end user control functions(for iOS/Android tablets and smartphones)

Other connections
- Ethernet : 1 x RJ45 for connection to Wi-Fi router (user supplied)
- MP-MFC ports : 2 x RJ45
- USB : 2 USB-A(firmware&configuration uploads, USB Wi-Fi)
- GPI : 2inputs(euroblock)
- Power requirements : 100~240 VAC, 50~60Hz, universal supply, IEC inlet
- Indicators : Blue power LED, blue starus LED

Dimensions(net) : 1.75in x 19in x 14in(4.5cm X 48.3cm X 35.6cm)

Weight(net/shipping) : 7.0lb(3.2kg)/11.0lb(5.0kg)
