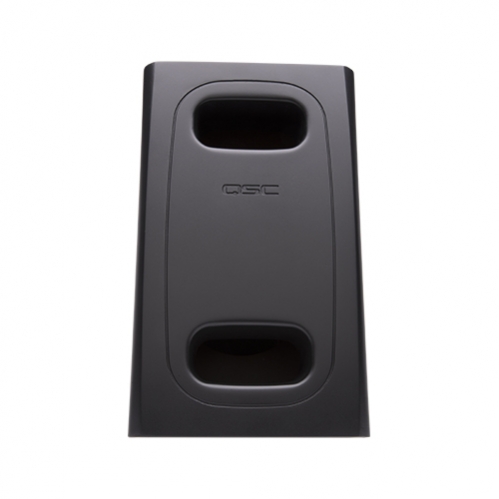

QSC AD-S.SUB는 AcousticDesign 스피커 시리즈의 일부로 낮은 볼륨 설정에서도 선명하고 밸런스 있는 소리를 제공하여 음악 재생에 적합하고
SUB/SAT 라우드 스피커는 믹스 앤 매치가 가능하도록 설계되었습니다.

2 Pole 유로블럭 커넥터 연결
정격 16옴 임피던스
탈착식 커버 플레이트
X-Mount Mini 마운팅 하드웨어로 유연한 각도 조정
검은색 또는 흰색 디자인 제공

System details

LF transducer : 6.5in(165mm) dual voice coil weather treated paper cone woofer
HF transducer : N/A
Effective frequency range : 45Hz – 150Hz
Rated noise power/voltage : 100W/20V(rms)
Sensitivity(dB)(Rated @ 1W, 1m) : 86
Coverage(‐6dB) : Omni
Directivity factor : 1.58
Directivity index(dB) : 2.0
Maximum continuous SPL(dB) : 100
Maximum peak SPL(dB) : 106
Recommended amplifier : 100W
Transformer taps/impedance : 70V: 100, 50, 25, 12.5W(mono only) 100V: 100, 50, 25W(mono only)
               Bypass: 4Ω mono or 8Ω + 8Ω stereo
Connector : Hi-Z mono input: 4-pole euroblockwith thru output
Low-Z input: 4-pole euroblock, left(mono) and right
Hi-pass output: x2 4-Pole euroblockfor x4 satellites

Enclosure details

Enclosure material : Vinyl wrapped medium density fiberboard
Port baffle/cover panel : ABS
Ingress protection : N/A
Operating environment : Designed for indoor use
Operating temperature range : -20 to 50°C(-4 to 122 °F)
Cutout dimension : Ø 4.5in(Ø115mm)
Weight(net/shipping) : 23.6Ib(10.7kg)/13.94Ib(30.73kg)
Product dimensions including wall bracket(HxWxD) : 13.8 x 8.2 x 1.7in(350 x 209 x 432mm)
Shipping dimensions(HxWxD) : 21.0 x 12.4 x 18.6in(535 x 315 x 473mm)
Included mounting hardware : V-wall bracket, 4x Euroblockconnector, rear cover panel, adhesive rubber feet
Safety agency : Transformer UL registered per UL1876, ROHS, CE compliant
