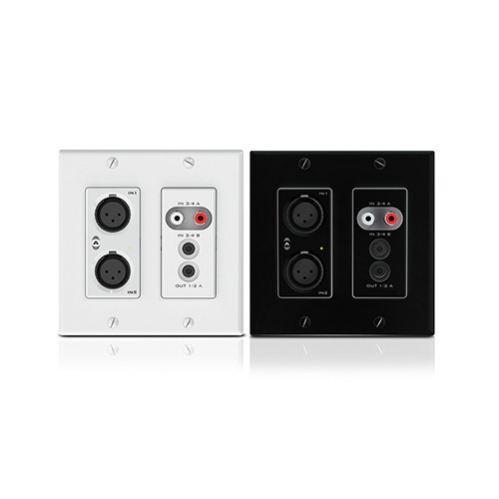

unD6IO-BT는 XLR, RCA 및 3.5mm을 통해 입출력을 제공하는 I/O Dante 네트워크 오디오 컨트롤러 장비입니다.

XLR 입력 x 2, RCA 입력 x 2, 3.5mm 입력 x 1, 3.5mm 출력 x 1 및 2개의 밸런스 출력
802.3af 호환과 PoE 전원 공급 가능
3가지 게인 레벨 제어가 가능한 XLR 입력 및 다양한 레벨 및 기기를 소프트웨어를 통해 볼륨 제어 가능
48V 팬텀 전원 전환 가능
Q-SYS 플러그인을 통해 소프트웨어로 제어 가능
모노/스테레오 RCA 입력 및 3.5mm 입력 선택 가능 또한 소프트웨어를 통해 각각 사용할지 합하여 사용할지 선택 가능

System details

Audio Inputs
- Input types : 2x XLR(balanced and RF filtered inputs), inputs 2/4 2x stereo unbalanced
        RCAinputs, inputs 3/4 A stereo
        unbalanced TRS 3.5mm inputs, inputs 3/4B
- Gain : -18dB, -3dB, +25dB and +40dB, software selectable(inputs 1/2)
- Input impedance : > 1.8kΩ at any gain(inputs 1/2)
          >10kΩ(inputs 3/4A & B)
- Maximum input levels : +20dBu @ -18dB gain,
            +6 dBu@ - 3dB gain,
            -23dBu @ +25dB gain
            -38dBu @ +40dB gain(inputs 1/2)
            +12dBu(inputs 3/4 A & B)
- Phantom power : +48V, software selectable(inputs 1/2 only)

Audio input performance
- EIN : -115dBu(mic inputs 1/2)
- THD+N : < 0.02% @ 1kHz for all gain settings, input signal 3dB below maximum(mic inputs 1/2)
- Frequency response : 20Hz ~ 20kHz, +/- 1dB(-18 and – 3dB gain on Inputs 1/2)
            50Hz ~ 20kHz +/- 1dB(+25dB and +40dB gain on Inputs 1/2)
            20Hz ~ 20kHz, +/- 1dB(inputs 3/4 A&B)
- Maximum input levels : 0.250ms minimum

Audio outputs
- Output type : Two balanced line level with automatic muting on loss of Dante signal on 6-pin depluggablephoenix(outputs 1/2B)
        two unbalanced line level outputs on stereo 3.5mm TRS(outputs 1/2A)
- Attenuation range : Software controlled volume(0 to -60dB, 1dB increments)
- Output impedance : 200Ω balanced, 100Ω unbalanced
- Maximum output levels : +12dBu at 0dB attenuation(output 1/2A)
             +20dBu at 0dB attenuation(output 1/2B)

Audio output performance
- Output type : Two balanced line level with automatic muting on loss of Dante signal on 6-pin depluggablephoenix(outputs 1/2B)
        two unbalanced line level outputs on stereo 3.5mm TRS(outputs 1/2A)
- Attenuation range : Software controlled volume(0 to -60dB, 1dB increments)
- Output impedance : 200Ω balanced, 100Ω unbalanced
- Maximum output levels : +12dBu at 0dB attenuation(output 1/2A)
             +20dBu at 0dB attenuation(output 1/2B)

Dante network
- Physical level : Standard ethernet
- Connector : Single RJ-45
- Cable type : CAT-5e or better
- Transmission speed : 100Mbps
- Supported sample rates : 44.1kHz, 48kHz
- Minimum Dante network latency : 1ms

General
- Dimensions(WHD) : dual-gang, in-wall form factor 3.5 x 4.2 x 2in(88.9 x 106.68 x 50.8mm)
- Weight : 0.6lb(0.27kg)
- Operating temperature : 0 to 40°C
- Regulatory compliance : FCC CFR 47 Parts 15B Class A
            ICES-003
            CE(EN55022)
            RoHS
            REACH

Environmental
- Power : 802.3af PoE
- Power consumption : < 5.5W
