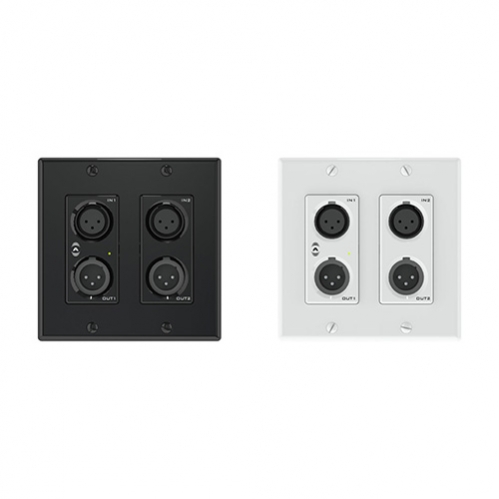

unDX2IO+는 각각 2개의 XLR 입출력 및 소프트웨어를 통해 제어가 가능한 I/O 네트워크 오디오 인터페이스 장비입니다.

소형 컴팩트한 디자인으로 어디든 간편하게 설치 가능
802.3af 호환 및 PoE 전원 공급 가능
채널 별 48v 팬텀 전원 공급 가능
소프트웨어를 통한 0dB~60dB 아날로그 입출력 제어 가능
Q-SYS control 플러그인이 사용 가능하여 별도의 프로드래밍 불필요

System details

Audio inputs
- Input types : 3-pin XLR(balanced and RF filtered)
- Gain : -18dB, -3dB, +25dB, +40dB, software selectable
- Input impedance : > 1.8kΩ at any gain setting
- Maximum input levels 1&2 : +20dBu @ 0dB w/ -15dB pad
              +5dBu @ 0dB gain
              -22dBu@ +25dB gain
              -38dBu @ +40dB gain
- Maximum input levels 3&4 : +4dBu mode: +20dBu
              -10 dBV mode: +12dBu
- Phantom power : +48v, software selectable

Audio outputs
- Output type : Balanced line level with automatic muting on loss of Dante signal
- Output gain : 0dB
- Maximum output levels : +20dBu

Audio performance
- EIN : -115dBu(+40dB gain)
- THD+N : < -85dBu @ 0dB gain
- Frequency response : < 0.05% at any gain, input signal 3dB below maximum

Dante network
- Physical level : Standard ethernet
- Connector : Single RJ-45
- Cable quality : CAT-5e or better
- Transmission speed : 100Mbps
- Supported sample rates : 44.1kHz, 48kHz
- Minimum Dante network latency : 1ms

General
- Dimensions(WHD) : 3.5 x 4.2 x 2in(88.9 x 106.68 x 50.8mm)
- Weight : 0.6lb(0.27kg)
- Operating temperature : 0 to 40°C
- Regulatory compliance : FCC CFR 47 Parts 15B Class A
            ICES-003
            CE(EN55022)
            RoHS
            REACH
           
Environmental
- PoE : 802.3af PoE PD compliant
- Power consumption : < 5W max
