unHX2D는 Dante/AES67 네트워크 오디오와 2채널 HDMI PCM 오디오 및 비디오를 연결시켜주는 HDMI embedder/de-embedder 장비입니다.

HDMI 2.0을 호환하며 최대 4K60 4:4:4의 해상도 제공
Q-SYS 제어 플러그인으로 Q-SYS와 쉽게 연동 가능

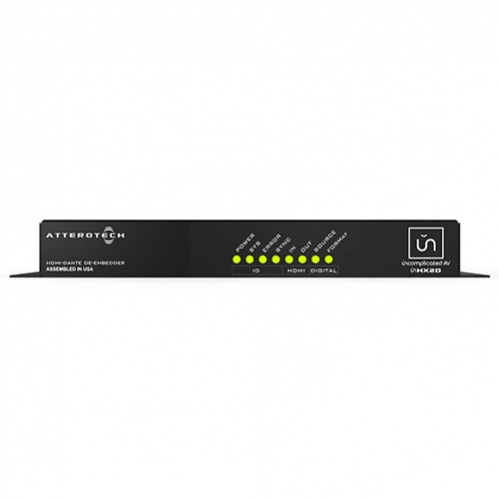

Dante 상태, HDMI 연결 및 디지털 오디오 상태 표시 전면 LED
스프트웨어를 통한 제어 및 EDID 설정 가능
PoE 전원 공급 가능
Dante 네트워크 오디오 출력에서 동기화를 위한 400ms의 지연 가능

System details

Analog audio inputs
- Input type : Balanced 3-pin line level
- Input sensitivity : –10dBV(consumer) or +4dBu(professional), software-selectable
- Input impedance : 10kΩ
- Maximum input levels : +20dBu(+/- 0.5dB) @ +4dBu input sensitivity, +10dBV (+/- 0.5dB) @ -10dBV input sensitivity
- THD+N : < 0.005%
- Dynamic range : > 105dB

Analog audio output
- Output type : Balanced 3-pin line level
- Output impedance : –10dBV(consumer) or +4dBu(pro) software selectable
- Maximum output level : 10kΩ
- THD+N : +20dBu(+/- 0.5dB) @ +4dBu input sensitivity, +10dBV(+/- 0.5dB) @ -10dBV input sensitivity

S/PDIF audio inputs
- Supported formats : S/PDIF(IEC-60598) 2ch PCM, 24bit
- Supported sample rates : 44.1kHz, 48kHz, 88.2kHz, 96kHz, 192kHz
- THD+N : < 0.005%

S/PDIF audio output(mirrors HDMI input audio)
- Supported formats : S/PDIF(IEC-60598) 2ch PCM, 24bit compressed multi-channel in pass through mode
- Supported sample rates : 44.1kHz, 48kHz, 88.2kHz, 96kHz, 192kHz
- THD+N : < 0.005%

HDMI audio inputs/outputs
- Supported formats : 2-CH PCM, 24bit
- Supported sample rates : 44.1kHz, 48kHz, 88.2kHz, 96kHz, 192kHz
- THD+N : < 0.005%

Video specifications
- HDCP : S/PDIF(IEC-60598) 2-CH PCM, 24bit compressed multi-channel in pass through mode
- HDMI : 44.1kHz, 48kHz, 88.2kHz, 96kHz, 192kHz
- Supported video formats : Resolution/frame rate(Hz) - 4096 x 2160p/23.98, 24, 25, 29.97, 30, 50, 59.97, 60
                          3840 x 2160(UHD)/23.98, 24, 25, 29.97, 30, 50, 59.97, 60
                          2048 x 1080p, 1080p/23.98, 24, 25, 29.97, 30, 50, 59.94, 60
                          1080i, 720p, 576p, 576i, 480p/480i 50, 50.94, 60
                          3D support
- Color space : YUV, RGB
- Chroma subsampling : 4:4:4, 4:2:2, 4:2:0
- Max color depth : 48bit
- EDID : SW configurable
- Hot plug detect : SW configurable
- Bandwidth : 18Gbps(600MHz)
- Connectors : HDMI type A

Dante network
- Physical layer : Ethernet
- Connector : Single RJ-45
- Cable quality : CAT-5e or higher
- Transmission speed : 100Mbps
- Supported sample rates : 48kHz
- Minimum Dante network latency : 1ms

Power requirements
- PoE : 802.3af PoE PD compliant
- Power consumption : < 7.6W max

General
- Dimensions (WHD) : 9.2 x 1 x 4in(233.7 x 25.4 x 101.6mm)
- Weight : 1.3lb(0.6kg)
- Product compliance : CC CFR 47 parts 15B Class A, EN55011, ICES-003, CE(EN55022 / EN55024), RoHS, REACH
