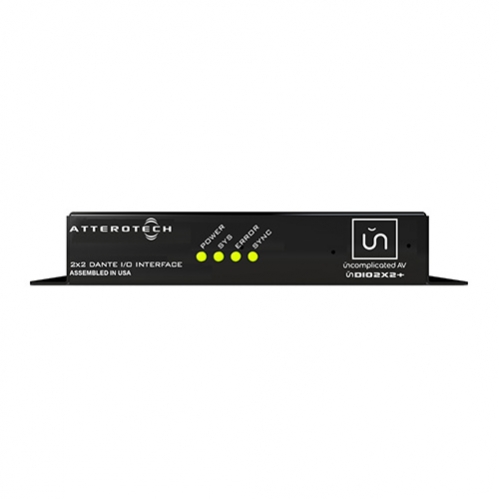

unDIO2x2+는 2x2 아날로그 채널로 Dante 네트워크 오디오와 연결 시켜주는 I/O 네트워크 오디오 인터페이스 장비입니다.

업계 표준 최대 20dBu 레벨 입력 +20dBu 레벨 출력 가능
소프트웨어를 통한 제어 가능
채널 별 48V 전원 공급 가능
PoE 전원 공급 가능
Q-SYS 플러그인으로 별도의 프로그래밍 불필요

System details

Analog inputs
- Input type : Balanced and RF filtered 3- pin depluggable
- Gain : -12dB input pad 0dB, +15dB, +30dB, +45dB software selectable
- Input impedance : > 1.8k ohms at any gain setting
- Maximum input levels : +20dBu @ 0dB gain(with pad active)
            +8dBu @ 0dB
            -7dBu @ +15dB gain
            -22dBu @ +30dB gain
            -37dBu @ +45dB gain
- Phantom power : +48V, software selectable

Analog output
- Output type : Balanced line level with automatic muting on loss of Dante signal
- Output volum : -60dB to 0dB in 1dB steps
- Maximum output level : +20dBu

Analog performance
- EIN : -119bBu(+45dB gain)
- Output noise : < -85dBu @ 0dB gain
- System THD : < 0.05% at any gain, input signal 3dB below maximum

Dante network
- Physical level : Standard ethernet
- Connector : Single RJ-45
- Cable quality : CAT-5e or better
- Transmission speed : 100Mbps
- Supported sample rates : 44.1kHz 48kHz
- Minimum Dante network latency : 1ms

Power requirements
- PoE : 802.3af PoE PD compliant
- Power consumption : < 5W Max
- Cable quality : CAT-5e or better

Physical dimensions
- Dimensions(WHD) : 6.45 x 1.06 x 3.45in
- Weight : 0.8ibs

Product compliance : FCC CFR 47 parts 15B Class A
            EN55011 ICES-003
            CE(EN55022 / EN55024)
            RoHS
            REACH
