unD4I-L은 4개의 입력과 4개의 logic I/O와 Dante/AES67 네트워크 오디오를 사용하는 소형 I/O 네트워크 오디오 인터페이스 장비입니다.

4개의 입력 및 4개의 logic I/O 연결 지원
소형 컴팩트한 디자인으로 어디든 간편하게 설치 가능
PoE 전원 공급 가능
채널 별 48v 팬텀 전원 공급 가능
소프트웨어를 입출력 제어 가능
네트워크 및 전원 데이지 체인 가능

System details

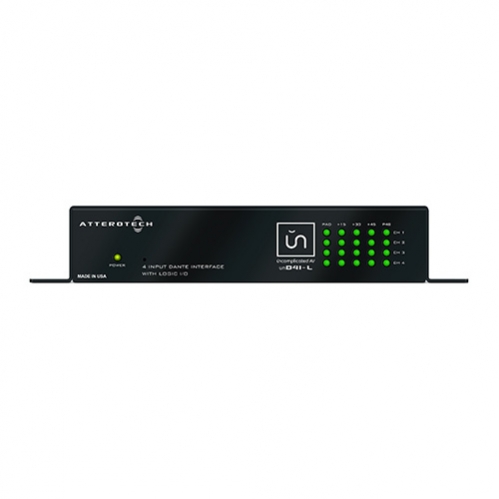

Front panel
- Gain and phantom power status LEDs : Shows the gain/pad setting and phantom power status for each of the four input channels.
- Power/ID LED : Indicates power when the unit is on, and blinks in response to a software command for unit identification

Rear panel
- Mic/line inputs 1 ~ 4 : Balanced and RF filtered inputs. Software selectable gain presets:
            without pad: 0dB, +15dB, +30dB, +45dB
            with pad: -12dB, +3dB, +18dB, and +33dB
            +48V phantom power on each channel
- RJ-45 ethernet connectors : The left RJ-45 connects to an Ethernet switch(PoE or non-PoE) and also provides the DC input for daisy chained units.
              the right RJ-45 provides DC out to daisy chained units.
- +24V DC input : Allows the unD4I-L to be powered
        if a PoE ethernet switch is not used.
- Power link in/out : Allows DC power to be daisy chained between multiple units.
- Logic inputs 1 ~ 4 : Allows external contact closures to be sensed and UDP, messages to be triggered to external devices.
- Logic outputs 1 ~ 4 : Allows LEDs and other low current devices to be driven, based on UDP messages from external devices.

General
- Mic/line input type : Balanced and RF filtered
- Phantom power : +48V, software-selectable
- Mic/line gain : 0dB, +15dB, +30dB, and +45dB, all software selectable. 12dB pad, software selectable
- Input impedance : > 1.8kΩ at any gain setting
- Equivalent input noise : -115dBu(+45dB gain)
- Maximum input levels : +8dBu @ 0dB gain
            -7dBu @ +15dB gain
            -22dBu @ +30dB gain
            -37dBu @ +45dB gain without 12dB pad.
            with 12dB pad: maximum input levels are 12dB higher
- System THD : < 0.02% at any gain, input signal 3dB below maximum
- Frequency response : 20Hz ~ 20kHz, +/-1dB
- Logic inputs : 0 ~ 3.3V DC input range, can indicate both hi/low and analog range
- Logic outputs : 10mA source current @ 3V DC, 50mA sink current from 5V DC up to 24VDC
- PoE class : Class 0 802.3af PoE PD compliant
- Regulatory compliance : FCC part 15 Class A, CE(EN 55022 Class A),
- Dimensions(WHD) : 8.3 x 1.5 x 4.7in(210.8 x 38.1 x 119.4mm)
- Weight : 1.38lbs(.63kg)
- Operating temperature : 0 to 40°C
